GE Current’s LumenChoice Type C system now offers LED T5 lamps! Some time ago they released their LumenChoice LED T8 and it was a big hit, so naturally they expanded to LED T5. This includes both T5HO and T5HE lamps in 2′, 3′ and 4′, so no matter what T5 fluorescent you are looking to convert, they have a comparable replacement option.

What is LumenChoice? First of all, it is a Type C linear LED system which means the LED T8 is powered by an external remote driver. It is very similar to how a fluorescent ballast powers linear fluorescents. The LumenChoice aspect of it means that the lamp’s lumen output is configurable at the LED driver level.

Now there are some fixed drivers that can be used, like a 21W driver or 15W driver and the lamp will respond accordingly (powered more by the 21W driver obviously). But the secret sauce in this operation is the High-watt and Low-watt drivers that GE makes. They come in either 2-lamp or 4-lamp. Each of these drivers have five settings for adjusting the light.

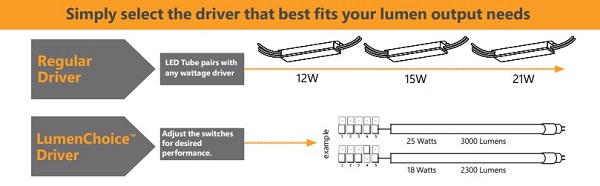

Take the LED/DR/D4L/LW for example. Per the image above, you can choose between five settings on the driver itself for changing the light output. This gives the user the control to determine the best light output for the lighting system based on the application.

For more information on GE Current’s Type C T5HO/T5HE series of lights and drivers, check out the links below or contact Premier for a quote.

Type C LED T5HO & T5HE Lamps

GE 38926 LEDT5/LC/G/4/830 – 4′ Type C LED T5HO LumenChoice 3000K
GE 38934 LEDT5/LC/G/4/835 – 4′ Type C LED T5HO LumenChoice 3500K
GE 38940 LEDT5/LC/G/4/840 – 4′ Type C LED T5HO LumenChoice 4000K
GE 38946 LEDT5/LC/G/4/850 – 4′ Type C LED T5HO LumenChoice 5000K

GE 38947 LEDT5/LC/G/3/830 – 3′ Type C LED T5HO LumenChoice 3000K
GE 38948 LEDT5/LC/G/3/835 – 3′ Type C LED T5HO LumenChoice 3500K
GE 38949 LEDT5/LC/G/3/840 – 3′ Type C LED T5HO LumenChoice 4000K
GE 38955 LEDT5/LC/G/3/850 – 3′ Type C LED T5HO LumenChoice 5000K

GE 38968 LEDT5/LC/G/2/830 – 2′ Type C LED T5HO LumenChoice 3000K
GE 38980 LEDT5/LC/G/2/835 – 2′ Type C LED T5HO LumenChoice 3500K
GE 38983 LEDT5/LC/G/2/840 – 2′ Type C LED T5HO LumenChoice 4000K
GE 38992 LEDT5/LC/G/2/850 – 2′ Type C LED T5HO LumenChoice 5000K

GE 38993 LEDT5/LC/G4/830HE – 4′ Type C LED T5HE LumenChoice 3000K
GE 38995 LEDT5/LC/G4/835HE – 4′ Type C LED T5HE LumenChoice 3500K
GE 38998 LEDT5/LC/G4/840HE – 4′ Type C LED T5HE LumenChoice 4000K
GE 38999 LEDT5/LC/G4/850HE – 4′ Type C LED T5HE LumenChoice 5000K

GE 39000 LEDT5/LC/G3/830HE – 3′ Type C LED T5HE LumenChoice 3000K
GE 39001 LEDT5/LC/G3/835HE – 3′ Type C LED T5HE LumenChoice 3500K
GE 39002 LEDT5/LC/G3/840HE – 3′ Type C LED T5HE LumenChoice 4000K
GE 39003 LEDT5/LC/G3/850HE – 3′ Type C LED T5HE LumenChoice 5000K

GE 39004 LEDT5/LC/G3/830HE – 2′ Type C LED T5HE LumenChoice 3000K
GE 39005 LEDT5/LC/G3/835HE – 2′ Type C LED T5HE LumenChoice 3500K
GE 39006 LEDT5/LC/G3/840HE – 2′ Type C LED T5HE LumenChoice 4000K
GE 39016 LEDT5/LC/G3/850HE – 2′ Type C LED T5HE LumenChoice 5000K

GE 21383 LED/DR/D2L/HW – High Watt LumenChoice 2-Lamp LED Type C Driver
GE 21392 LED/DR/D4L/HW – High Watt LumenChoice 4-Lamp LED Type C Driver
GE 21378 LED/DR/D2L/LW – Low Watt LumenChoice 2-Lamp LED Type C Driver
GE 63126 LED36T8/DR/D2L – Type C Dimming Driver 2-Lamp 36W
